Isolated Converters Orion 110 Volt Power rating (W) 360 Galvanic isolation yes Temperature increase after 30 minutes at full load (°C) 30 Fan assisted cooling (temp. controlled) yes Weight kg 1,4... Lue lisää
Tarjoustuote!
Nyt vainSäästä 86,00 €
344,00 €(Sis.alv)Ovh. 430,00 €(Sis.alv)
-20%
Hinta voimassa toistaiseksi
274,10 €(alv 0%)
- Tuotekoodi: 125489351
- Takuu: 1 vuosi
- Paino: 1.6 kg
- Jännite: 110V/24V
kpl

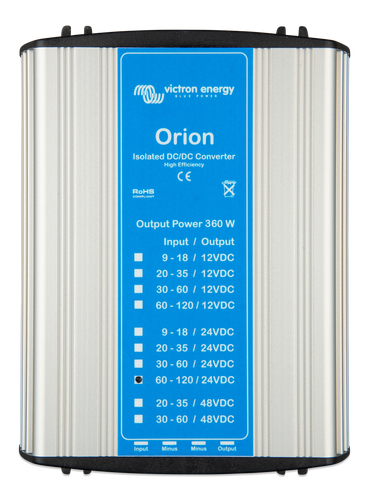

Isolated Converters
Orion 110 Volt
Power rating (W) 360
Galvanic isolation yes
Temperature increase after 30 minutes at full load (°C) 30
Fan assisted cooling (temp. controlled) yes
Weight kg 1,4
Dimensions hxwxd in mm 82 x 132 x 190
Input voltage 110V (60 – 140V)
Output voltage 12,5V or 24V
Common Characteristics
Output voltage stability 2%
Output voltage tolerance 3%
Output noise < 50mV rms
Off load current < 25mA
Efficiency appr. 85%
Isolation > 400Vrms between input, output and case
Operating temperature - 20 to + 40°C (0 to 100°F). Derate linearly to 0A at 70°C (160°F)
Humidity Max 95% non-condensing
Casework Anodised aluminium
Connections 6.3mm (0.25 inch) push-on flat blade connectors
Protection:
Overcurrent
Overheating
Reverse polarity connection
Overvoltage
Short circuit proof
Reduction of output voltage
Fuse and reverse connected diode across input
Varistor (also protects against load dump)
Standards:
Safety Emission Immunity EN 60950 EN 61000-6-3, EN 55014-1 EN 61000-6-2, EN 61000-6-1, EN 55014-2
Orion 110 Volt
Power rating (W) 360
Galvanic isolation yes
Temperature increase after 30 minutes at full load (°C) 30
Fan assisted cooling (temp. controlled) yes
Weight kg 1,4
Dimensions hxwxd in mm 82 x 132 x 190
Input voltage 110V (60 – 140V)
Output voltage 12,5V or 24V
Common Characteristics
Output voltage stability 2%
Output voltage tolerance 3%
Output noise < 50mV rms
Off load current < 25mA
Efficiency appr. 85%
Isolation > 400Vrms between input, output and case
Operating temperature - 20 to + 40°C (0 to 100°F). Derate linearly to 0A at 70°C (160°F)
Humidity Max 95% non-condensing
Casework Anodised aluminium
Connections 6.3mm (0.25 inch) push-on flat blade connectors
Protection:
Overcurrent
Overheating
Reverse polarity connection
Overvoltage
Short circuit proof
Reduction of output voltage
Fuse and reverse connected diode across input
Varistor (also protects against load dump)
Standards:
Safety Emission Immunity EN 60950 EN 61000-6-3, EN 55014-1 EN 61000-6-2, EN 61000-6-1, EN 55014-2
